Fumechamber

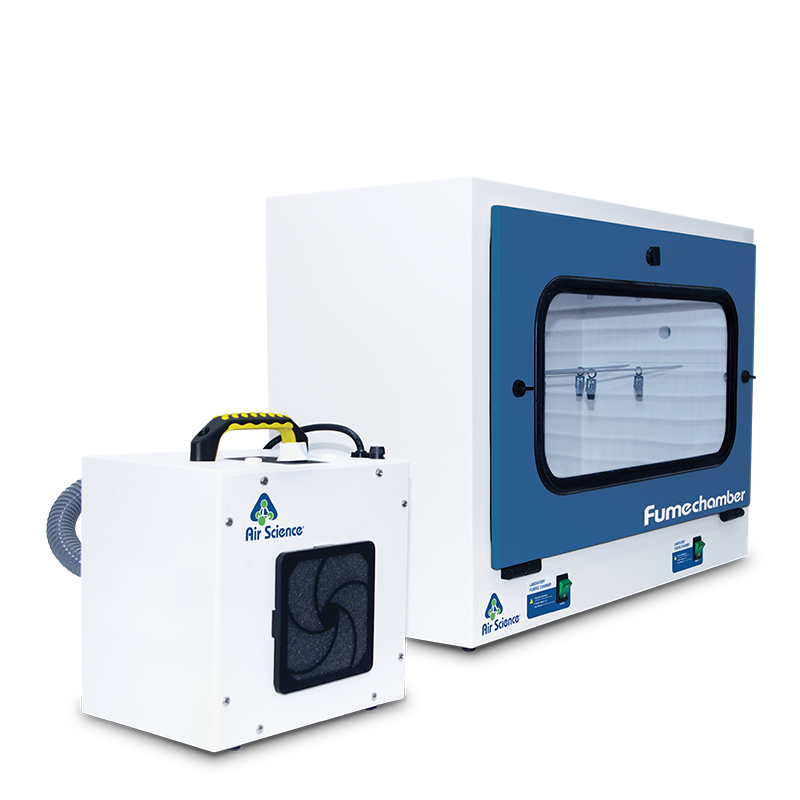

The fume extractor is a self-contained cyanoacrylate filtration system that connects directly to the Laboratory Fuming Chambers via the inlet port. The noxious odors and fumes inside the chamber are drawn through an activated carbon filter.

Description

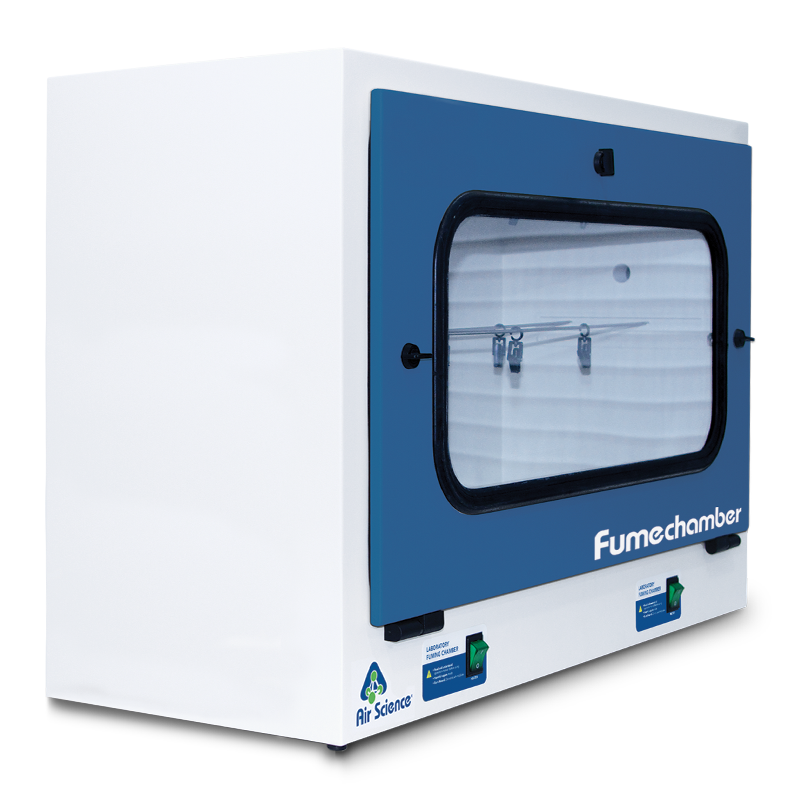

The Air Science Fuming Chamber uses cyanoacrylate fuming for latent print development on various surfaces. The fuming chamber incorporates the Air Science Fume Extraction unit coupled with a self-contained filtration system to safely purge the noxious fumes when the printing cycle is complete.

Model Specifications

External Width: 9.5″  |  241 mm
External Depth: 9.5″  |  241 mm
External Height: 9.5″  |  241 mm
Shipping Width: 16″  |  406 mm
Shipping Depth: 16″  |  406 mm
Net Weight: 17 lbs  |  7 kg
Shipping Weight: 19 lbs  |  9 kg

Construction: Epoxy-coated Steel

Environmental: ISO 14001 : 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015

Portable Humidifier and Hose: PHUM-BLC
* Factory installed; specify when ordering

Electrical Voltage: 120V, 60Hz

Technical Info
