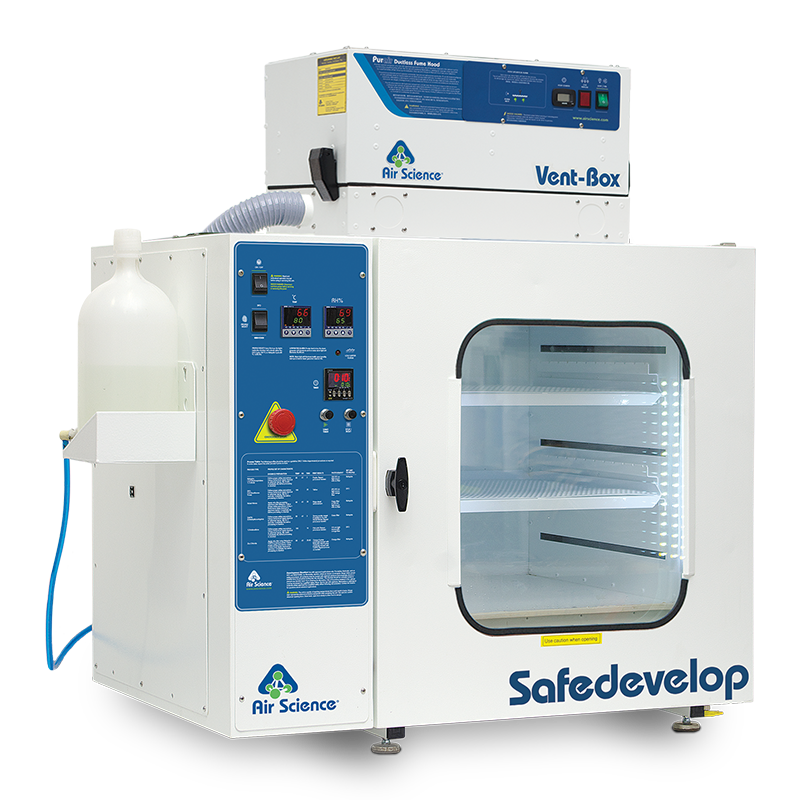

Safedevelop DFO and Ninhydrin Fingerprint Development Chamber

  • The professionally designed automatic development chamber eliminates reliance on do-it-yourself systems that lack user-safety allowances and controls needed for repeatable results.
  • To change between profiles required only the press of a few buttons on an easy to use LED display.
  • The chamber features rapid condition recovery following a door opening.
  • The wide temperature and humidity range allows fingerprints to be processed in a matter of minutes - not days like some conventional methods.
  • The steam generator produces humidity by a sealed, automatic, steam injection system, ensuring only vaporized water enters the sample chamber to eliminate the possibility of contaminating samples with water droplets.

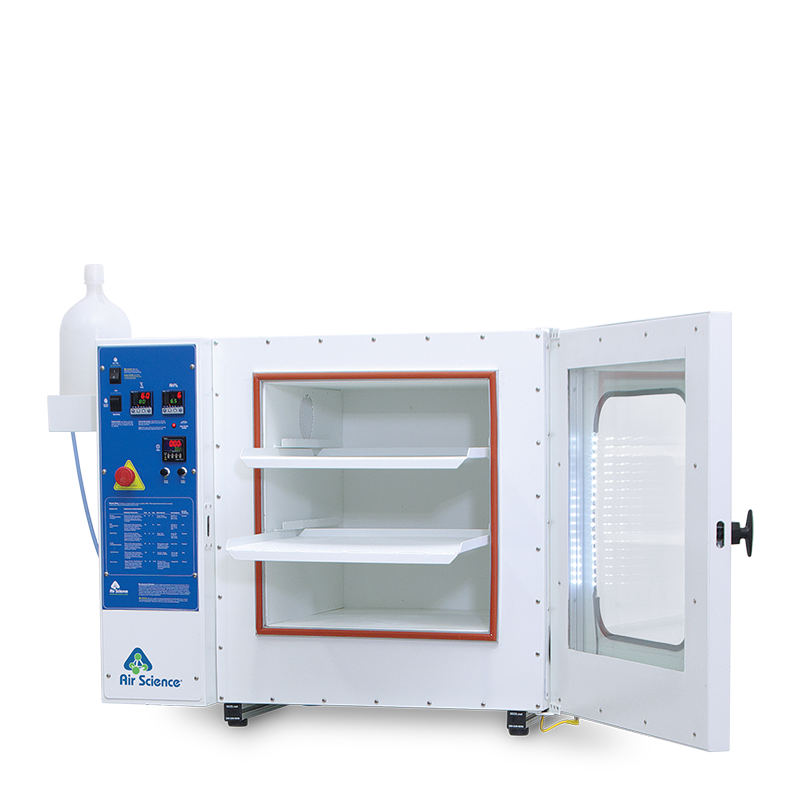

  • The chamber's generous working area and flexible shelving and rod system enable large batches of operational material to be processed quickly and easily.

Description

Safedevelop fingerprint development chambers are designed to safely develop latent fingerprints on porous surfaces using DFO, Ninhydrin, and other chemicals in a controlled environment for optimum effectiveness and safety where moisture, temperature, and development time are critical factors.

Model Specifications

Internal Height: 19.6″  |  495 mm
External Width: 36.25″  |  921 mm
External Depth: 25.5″  |  648 mm
External Height: 29.25″  |  743 mm
Shipping Width: 40″  |  1016 mm
Shipping Depth: 48″  |  1219 mm
Net Weight: 200 lbs  |  91 kg
Shipping Weight: 245 lbs  |  111 kg

Cabinet Style: Desktop
Construction: Epoxy-coated Steel

Environmental: ISO 14001 : 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015

Base Stand, Mobile, with Casters: CART-30
Vent-Box Filtration*: VB-24
* Factory installed; specify when ordering

Electrical Voltage: 120V, 60Hz
NEMA Plug: 5-15P

Control: Electronic#Programmable Heat and Humidity Control
Monitoring Options:  / / Standard
