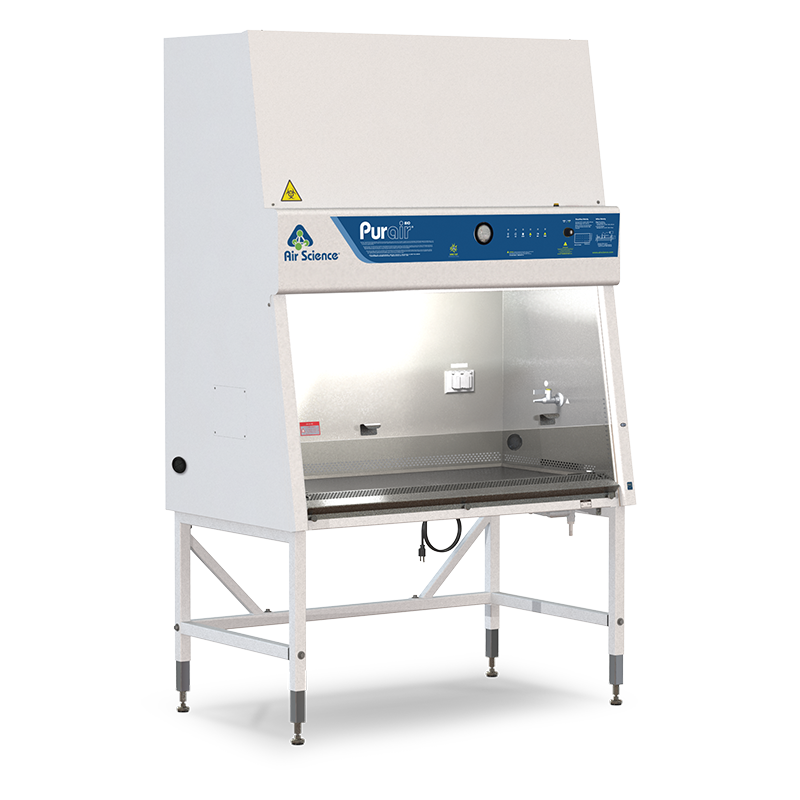

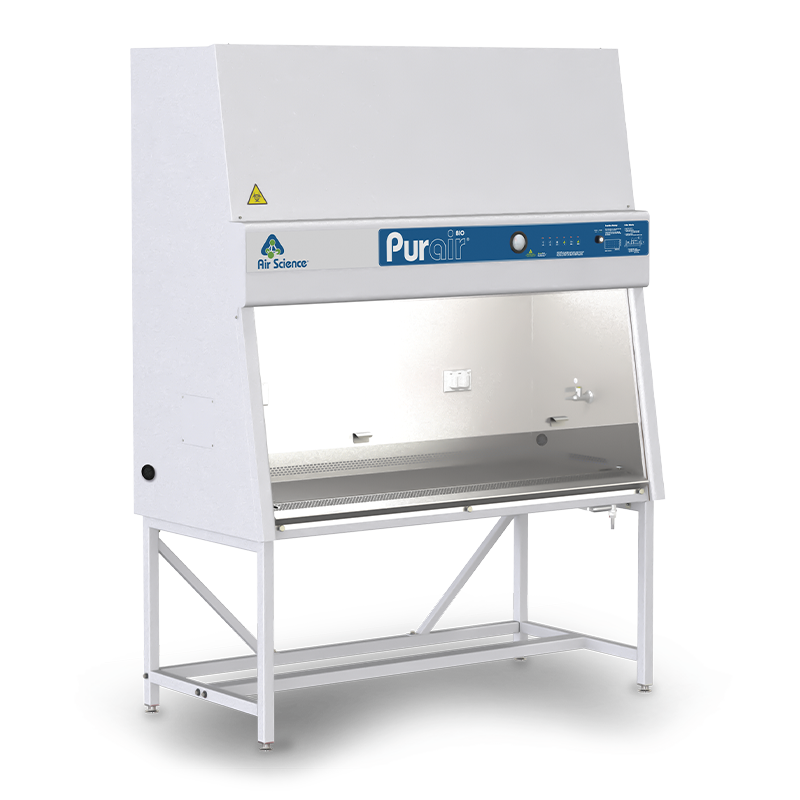

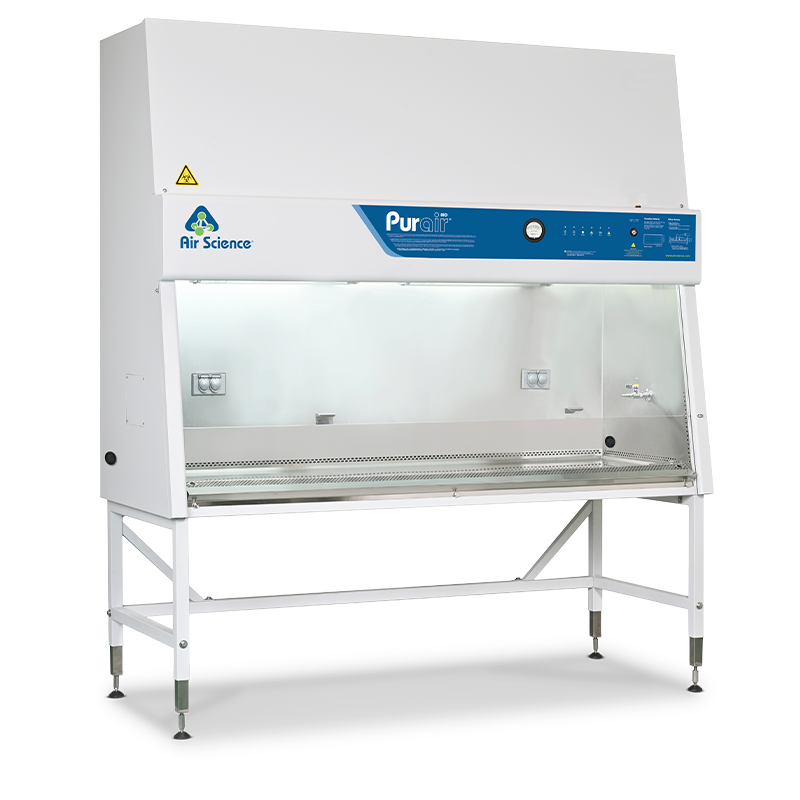

Purair BIO Biological Safety Cabinets

  • Single EC Blower Motor Design. The Purair BIO is designed with a single EC blower motor for ease of use, reliability, and to promote low cost of ownership. Dual motor designs can introduce a number of problems, including unbalanced airflow, higher maintenance costs, longer certification processes, and uneven filter loading. Airflow adjustments are simpler, operational costs lower, and maintenance easier for BSCs equipped with single EC blower motors.
  • Flexibility. The Purair BIO includes multiple service connections for maximum flexibility. It includes duplex electrical outlets with splash-proof, UL listed covers. CSA certified service valves for gas, air, and vacuum are also available. Maximum working pressure of 75PSI.
  • Operator Safety. The anti-ultraviolet, 6 mm tempered glass ensures maximum protection for the operator.
  • Ergonomic Design. The user interface combines ergonomics, safety, and aesthetics with a 10° angled window design that reduces operator head and elbow discomfort, as well as eye strain and fatigue.
  • Slim Profile. The Purair BIO is one of the narrowest BSCs on the market and permits easy passage through standard doorways.

Description

The Purair® BIO biological safety cabinet (BSC) is certified for safety and performance in accordance with NSF/ANSI Standard 49 and EN12469 which certifies Class II, Type A2 laminar flow cabinets are suitable for working with biosafety agents at levels 1, 2 and 3. Air Science 4-foot models are certified by NSF.

Model Specifications

Internal Height: 28″  |  709 mm
External Width: 40.7″  |  1034 mm
External Depth: 31.1″  |  789 mm
External Height: 60.5″  |  1537 mm
Shipping Width: 43.3″  |  1100 mm
Shipping Depth: 33.5″  |  850 mm
Net Weight: 463 lbs  |  210 kg
Shipping Weight: 529 lbs  |  240 kg

Cabinet Style: Straight Legs
Construction: Stainless Steel

Manufacturing: EN 12469

Exhaust Collar*: HBE-103-AA-A
IV Bar Kit: BC-1934-A
Microprocessor Control*: AS-AHA-103-AA-B
Moveable Elbow / Arm Rest*: BC-1933-A
Service Fixture Kit*: BA-L4100-158-B
* Factory installed; specify when ordering

Airflow: Vertical
Airflow Direction: Downflow
Face Velocity: 100
Face Velocity: 64
Biological Filter: 2 Astrocel Class H14 HEPA Filters (Supply and Exhaust)

Electrical Voltage: 115V, 60Hz, 15A
NEMA Plug: 5-15P

Control: Electronic
