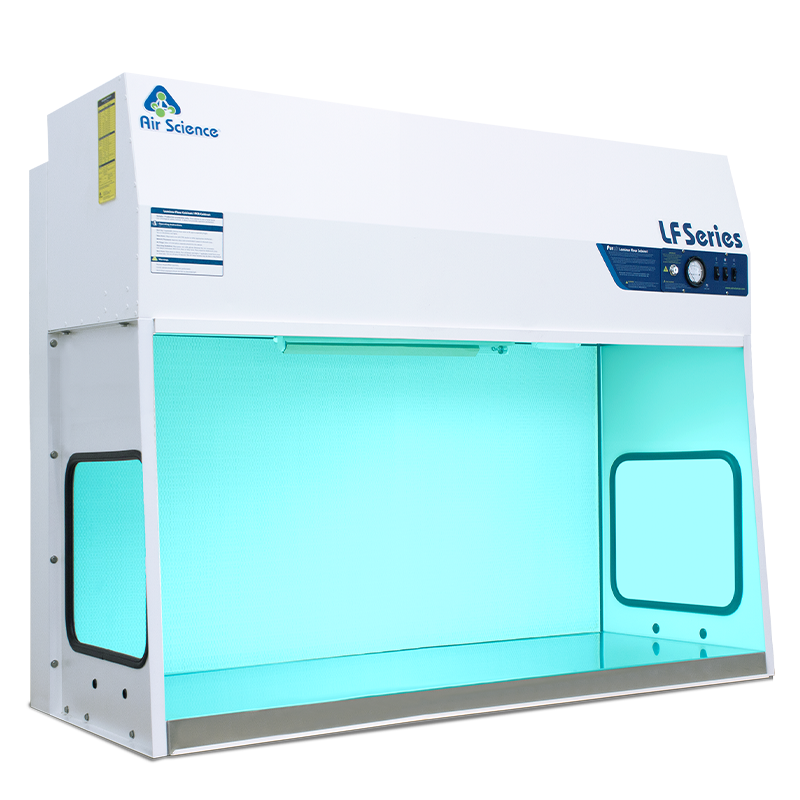

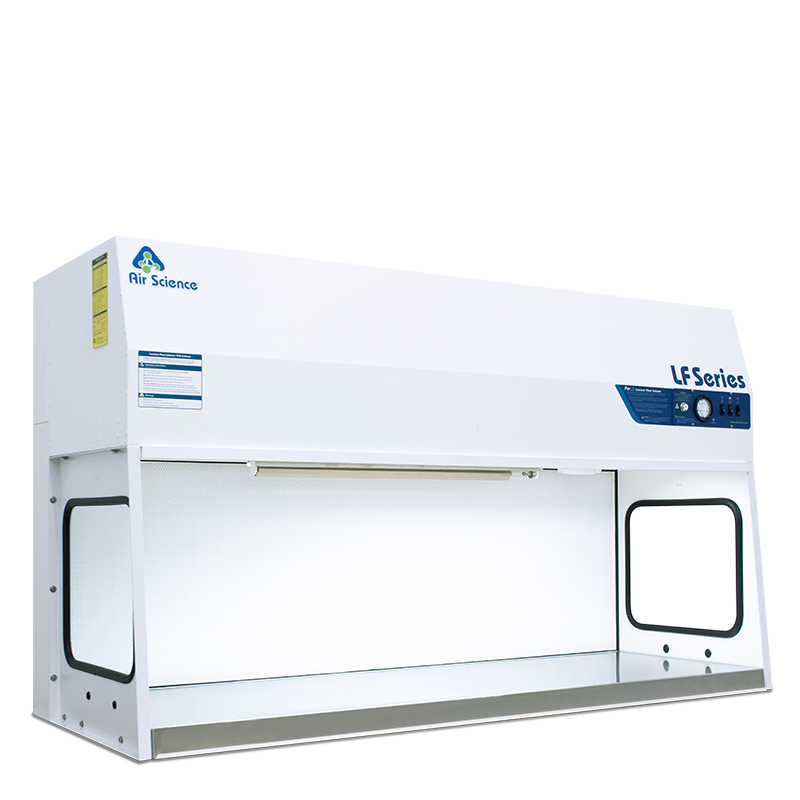

Horizontal Laminar Flow Cabinets
- Purair Laminar Flow Hoods are available in vertical and horizontal configurations with various sizes and options for a total of 36 models to choose from in 6 different widths.
- Purair Laminar Flow Hoods are shipped fully assembled. No installation is required; just plug them in and use them.
- Products are designed for desktop use, or may be installed on an optional mobile base stand.
- The rear wall of vertical flow cabinets is perforated to reduce work surface turbulence by removing some of the airflow to the rear.
- High capacity air handling system delivers flow velocity of 0.4 m/s or 80 fpm.
- Choose from standard powder coated interior or stainless steel interior (-SS models).
- Purair VLF and HLF hoods have an ULPA filter pressure gauge to measure filter performance.
- The Air Science filters are easy to access, easy to change.
- Accessories include an IV bar, service fixtures, base stand, UV lamp, and front door/cover.
- Provides sterile work zone for aeseptic techniques.
- Air cleanliness meets and exceeds ISO Class 4.
- All models use ULPA filters (99.999% efficient at particle sizes between 0.1 and 0.3 microns.
- All models equipped with a stainless steel work surface.
Description
Model Specifications
Internal Height: 22.8″ | 579 mm
External Width: 49.25″ | 1251 mm
External Depth: 29.5″ | 749 mm
External Height: 42.9″ | 1091 mm
Shipping Width: 60″ | 1524 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 289 lbs | 131 kg
Shipping Weight: 478 lbs | 213 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-48
Base Stand, Mobile, with Casters: CART-HLF-BW-48
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-48
IV Bar and "S" Hooks: IV-HLF-48
Ionization Bar: ION-48
Removable Front Cover: FCOVER-HLF-48
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-48-SDW
UV lamp with Night Door/Cover*: UV-48
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
Internal Height: 22.8″ | 579 mm
External Width: 37.25″ | 946 mm
External Depth: 29.5″ | 749 mm
External Height: 42.9″ | 1091 mm
Shipping Width: 45″ | 1143 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 246 lbs | 112 kg
Shipping Weight: 371 lbs | 168 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-36
Base Stand, Mobile, with Casters: CART-HLF-BW-36
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-36
IV Bar and "S" Hooks: IV-HLF-36
Ionization Bar: ION-36
Removable Front Cover: FCOVER-HLF-36
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-36-SDW
UV lamp with Night Door/Cover*: UV-36
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
Internal Height: 22.8″ | 579 mm
External Width: 73.25″ | 1861 mm
External Depth: 29.5″ | 749 mm
External Height: 42.9″ | 1091 mm
Shipping Width: 91″ | 2311 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 439 lbs | 199 kg
Shipping Weight: 595 lbs | 266 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-72
Base Stand, Mobile, with Casters: CART-HLF-BW-72
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-72
IV Bar and "S" Hooks: IV-HLF-72
Ionization Bar: ION-72
Removable Front Cover: FCOVER-HLF-72
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-72-SDW
UV lamp with Night Door/Cover*: UV-72
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
Internal Height: 22.8″ | 579 mm
External Width: 98.5″ | 2502 mm
External Depth: 29.5″ | 749 mm
External Height: 42.9″ | 1091 mm
Shipping Width: 110″ | 2794 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 725 lbs | 329 kg
Shipping Weight: 878 lbs | 398 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-96
Base Stand, Mobile, with Casters: CART-HLF-BW-96
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-96
IV Bar and "S" Hooks: IV-HLF-96
Ionization Bar: ION-96
Removable Front Cover: FCOVER-HLF-96
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-96-SDW
UV lamp with Night Door/Cover*: UV-96
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
Internal Height: 22.8″ | 579 mm
External Width: 25.25″ | 641 mm
External Depth: 29.5″ | 749 mm
External Height: 42.9″ | 1091 mm
Shipping Width: 40″ | 1016 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 170 lbs | 77 kg
Shipping Weight: 280 lbs | 127 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-24
Base Stand, Mobile, with Casters: CART-HLF-BW-24
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-24
IV Bar and "S" Hooks: IV-HLF-24
Ionization Bar: ION-24
Removable Front Cover: FCOVER-HLF-24
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-24-SDW
UV lamp with Night Door/Cover*: UV-24
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
NEMA Plug: Specify UK, Euro or Other Plug
Internal Height: 22.8″ | 579 mm
External Width: 61.25″ | 1556 mm
External Depth: 29.5″ | 749 mm
External Height: 42.9″ | 1091 mm
Shipping Width: 70″ | 1778 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 344 lbs | 156 kg
Shipping Weight: 494 lbs | 224 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-60
Base Stand, Mobile, with Casters: CART-HLF-BW-60
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-60
IV Bar and "S" Hooks: IV-HLF-60
Ionization Bar: ION-48
Removable Front Cover: FCOVER-HLF-60
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-60-SDW
UV lamp with Night Door/Cover*: UV-60
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
NEMA Plug: Specify UK, Euro or Other Plug
Internal Height: 28.9″ | 734 mm
External Width: 49.25″ | 1251 mm
External Depth: 29.5″ | 749 mm
External Height: 49″ | 1246.5 mm
Shipping Width: 60″ | 1524 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 319 lbs | 145 kg
Shipping Weight: 508 lbs | 227 kg
Cabinet Style: Extra Tall
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-48
Base Stand, Mobile, with Casters: CART-HLF-BW-48
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-48
IV Bar and "S" Hooks: IV-HLF-48
Ionization Bar: ION-48
Removable Front Cover: FCOVER-HLF-48XT
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-48-SDW
UV lamp with Night Door/Cover*: UV-48XT
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
Internal Height: 28.9″ | 734 mm
External Width: 37.25″ | 946 mm
External Depth: 29.5″ | 749 mm
External Height: 49″ | 1246.5 mm
Shipping Width: 45″ | 1143 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 266 lbs | 121 kg
Shipping Weight: 391 lbs | 175 kg
Cabinet Style: Extra Tall
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-36
Base Stand, Mobile, with Casters: CART-HLF-BW-36
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-36
IV Bar and "S" Hooks: IV-HLF-36
Ionization Bar: ION-36
Removable Front Cover: FCOVER-HLF-36XT
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-36-SDW
UV lamp with Night Door/Cover*: UV-36XT
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
Internal Height: 28.9″ | 734 mm
External Width: 73.25″ | 1861 mm
External Depth: 29.5″ | 749 mm
External Height: 49″ | 1246.5 mm
Shipping Width: 91″ | 2311 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 479 lbs | 217 kg
Shipping Weight: 635 lbs | 283 kg
Cabinet Style: Extra Tall
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-72
Base Stand, Mobile, with Casters: CART-HLF-BW-72
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-72
IV Bar and "S" Hooks: IV-HLF-72
Ionization Bar: ION-72
Removable Front Cover: FCOVER-HLF-72XT
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-72-SDW
UV lamp with Night Door/Cover*: UV-72XT
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
Internal Height: 28.9″ | 734 mm
External Width: 98.5″ | 2502 mm
External Depth: 29.5″ | 749 mm
External Height: 49″ | 1246.5 mm
Shipping Width: 110″ | 2794 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 585 lbs | 265 kg
Shipping Weight: 746 lbs | 338 kg
Cabinet Style: Extra Tall
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-96
Base Stand, Mobile, with Casters: CART-HLF-BW-96
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-96
IV Bar and "S" Hooks: IV-HLF-96
Ionization Bar: ION-96
Removable Front Cover: FCOVER-HLF-96XT
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-96-SDW
UV lamp with Night Door/Cover*: UV-96XT
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
Internal Height: 28.9″ | 734 mm
External Width: 25.25″ | 641 mm
External Depth: 29.5″ | 749 mm
External Height: 49″ | 1246.5 mm
Shipping Width: 40″ | 1016 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 191 lbs | 87 kg
Shipping Weight: 295 lbs | 134 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-24
Base Stand, Mobile, with Casters: CART-HLF-BW-24
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-24
IV Bar and "S" Hooks: IV-HLF-24
Ionization Bar: ION-24
Removable Front Cover: FCOVER-HLF-24XT
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-24-SDW
UV lamp with Night Door/Cover*: UV-24XT
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
NEMA Plug: Specify UK, Euro or Other Plug
Internal Height: 28.9″ | 734 mm
External Width: 61.25″ | 1565 mm
External Depth: 29.5″ | 749 mm
External Height: 49″ | 1246.5 mm
Shipping Width: 70″ | 1778 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 375 lbs | 170 kg
Shipping Weight: 525 lbs | 238 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-60
Base Stand, Mobile, with Casters: CART-HLF-BW-60
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-60
IV Bar and "S" Hooks: IV-HLF-60
Ionization Bar: ION-48
Removable Front Cover: FCOVER-HLF-60XT
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-60-SDW
UV lamp with Night Door/Cover*: UV-60XT
* Factory installed; specify when ordering
Airflow: Horizontal
Electrical Voltage: 230V, 50Hz
NEMA Plug: Specify UK, Euro or Other Plug
Technical Info
Model | Width | Depth | Height |
---|---|---|---|
HLF-48-G | 49.25" | 1251 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
HLF-36-G | 37.25" | 946 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
HLF-72-G | 73.25" | 1861 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
HLF-96-G | 98.5" | 2502 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
HLF-24-G | 25.25" | 641 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
HLF-60-G | 61.25" | 1556 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
HLF-48XT-G | 49.25" | 1251 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
HLF-36XT-G | 37.25" | 946 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
HLF-72XT-G | 73.25" | 1861 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
HLF-96XT-G | 98.5" | 2502 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
HLF-24XT-G | 25.25" | 641 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
HLF-60XT-G | 61.25" | 1565 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
Model | Width | Depth | Height |
---|---|---|---|
HLF-48-G | 48" | 1219 mm | 23.75" | 603 mm | 22.8" | 579 mm |
HLF-36-G | 36" | 914 mm | 23.75" | 603 mm | 22.8" | 579 mm |
HLF-72-G | 72" | 1829 mm | 23.75" | 603 mm | 22.8" | 579 mm |
HLF-96-G | 96" | 2438 mm | 23.75" | 603 mm | 22.8" | 579 mm |
HLF-24-G | 24" | 610 mm | 23.75" | 603 mm | 22.8" | 579 mm |
HLF-60-G | 60" | 1524 mm | 23.75" | 603 mm | 22.8" | 579 mm |
HLF-48XT-G | 48" | 1219 mm | 23.75" | 603 mm | 28.9" | 734 mm |
HLF-36XT-G | 36" | 914 mm | 23.75" | 603 mm | 28.9" | 734 mm |
HLF-72XT-G | 72" | 1829 mm | 23.75" | 603 mm | 28.9" | 734 mm |
HLF-96XT-G | 96" | 2438 mm | 23.75" | 603 mm | 28.9" | 734 mm |
HLF-24XT-G | 24" | 610 mm | 23.75" | 603 mm | 28.9" | 734 mm |
HLF-60XT-G | 60" | 1524 mm | 23.75" | 603 mm | 28.9" | 734 mm |
Purair Laminar Flow cabinets are suitable for applications that generate no biohazardous materials and do not require operator protection.
Mycology and Food Microbiology \ Plant and Mammalian Cell Culture \ Clinical Pharmacy and Hospitals \ Cleanrooms \ Semiconductor Assembly \ Pharmaceutical \ Aerospace \ Medical Device Assembly \ Research Laboratories
