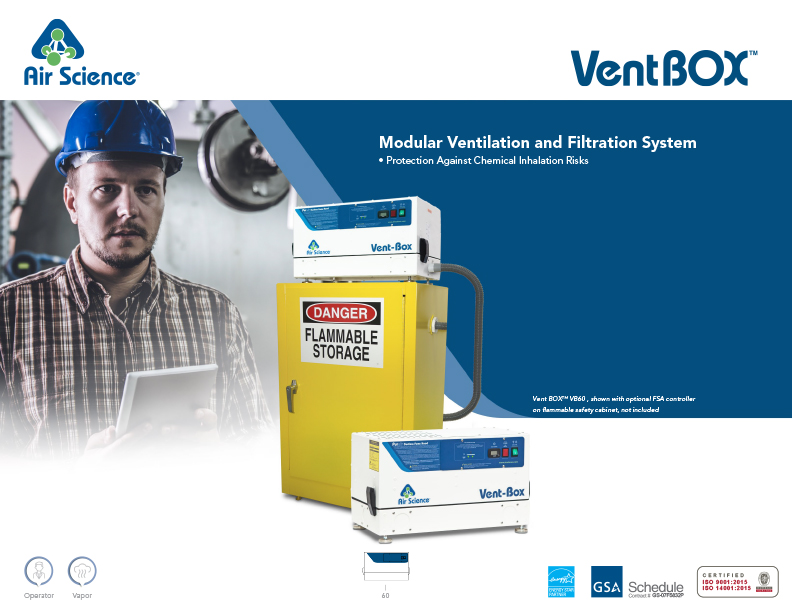

Vent BOX
- Low-profile, completely portable, no ductwork required.
- Compact size, easily positioned on shallow safety cabinets.
- Modular design permits multiple configurations.
- Universal connections allow retrofit to almost all available flammable and safety cabinets on the market.
Description
Model Specifications
External Width: 21.25″ | 540 mm
External Depth: 12″ | 305 mm
External Height: 13″ | 330 mm
Shipping Width: 24″ | 610 mm
Shipping Depth: 22″ | 559 mm
Net Weight: 32 lbs | 14 kg
Shipping Weight: 34 lbs | 15 kg
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Color Match - Blue: VB60-BE
Color Match - Green: VB60-GN
Color Match - Red: VB60-RD
Color Match - Yellow: VB60-YW
Ducting Collar: VB60-EXH
Filter Saturation Alarm*: FSA
Wall Mount: VB60-WM
* Factory installed; specify when ordering
Electrical Voltage: 230V, 50Hz
Technical Info
Model | Width | Depth | Height |
---|---|---|---|
VB60-G | 21.25" | 540 mm | 12" | 305 mm | 13" | 330 mm |
Model | Width | Depth | Height |
---|---|---|---|
VB60-G | - | - | - |
Formula | Description |
---|---|
GP Plus! | The most widely used filter in the range, primarily for solvent, organic and alcohol removal. |
ACI Plus!/SUL | Designed to neutralize volatile inorganic acid vapors. |
ACR | Iodine and methyl iodide vapors; It is frequently used for iodination reactions with lower level radioactive iodine. |
ACM | Mercury vapor |
AMM | Removes vapors from dilute ammonia solutions and to remove low molecular weight amines. |
FOR | Designed to oxidize formaldehyde and glutaraldehyde fumes; It is widely used in hospital pathology laboratories. |
HEPA/ULPA | Powders and particulates. |
Using innovative filtration technology, the Vent-Box creates a safe work environment over the widest range of applications in the industry.
Flammable Materials \ Acid and Corrosive Chemicals \ Paints \ Pesticides \ Hazardous Materials
