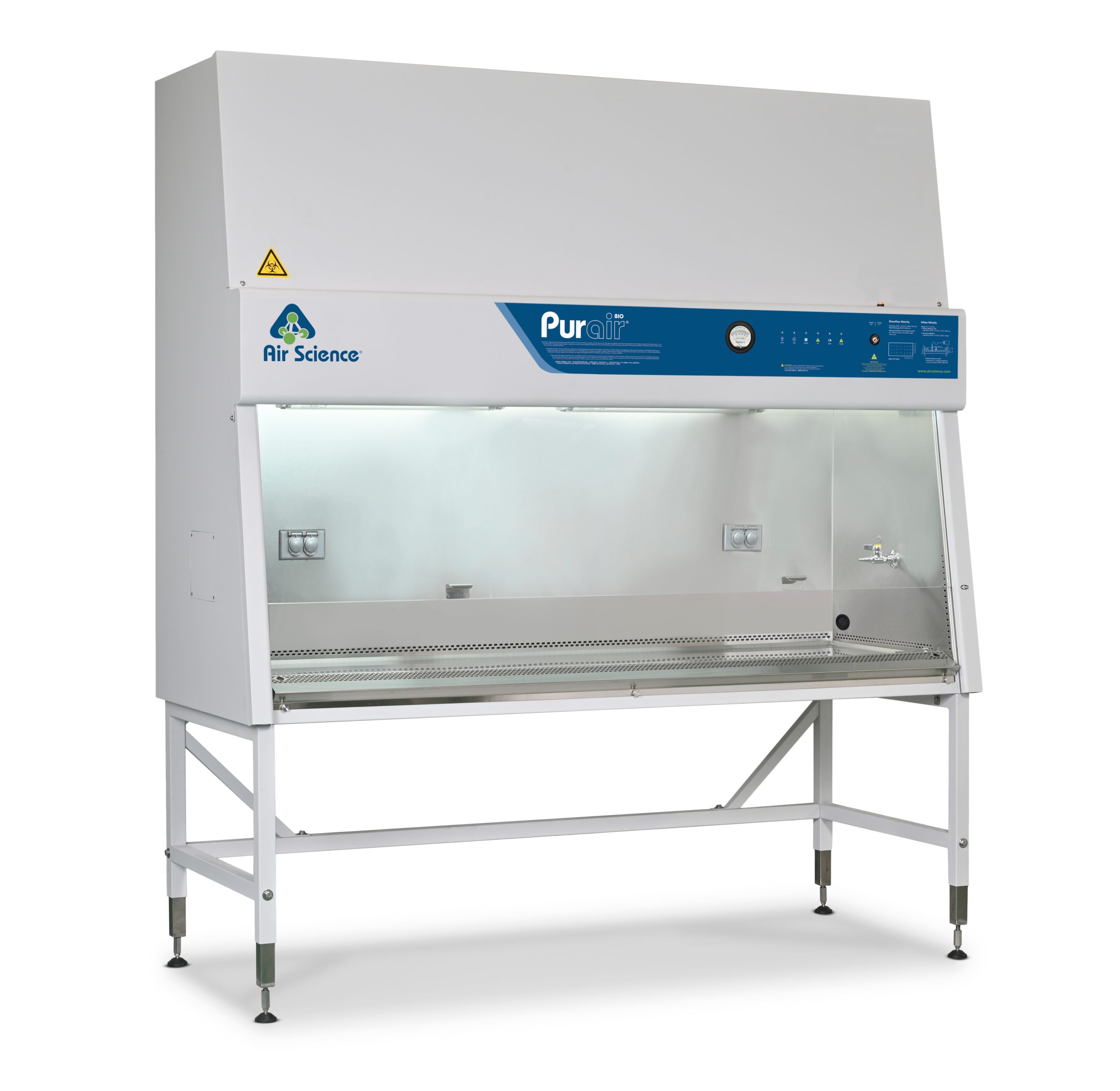

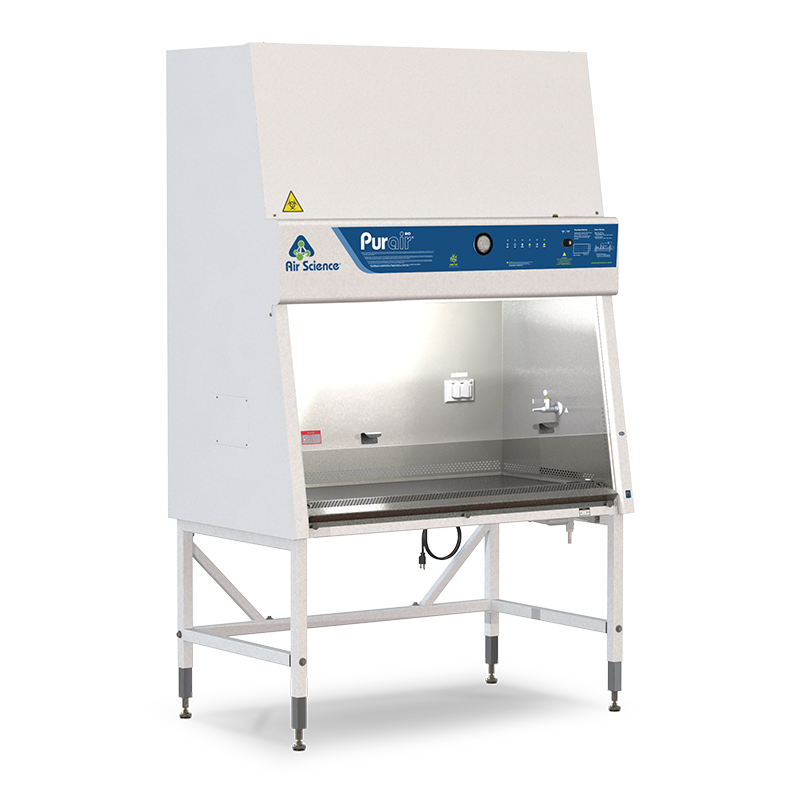

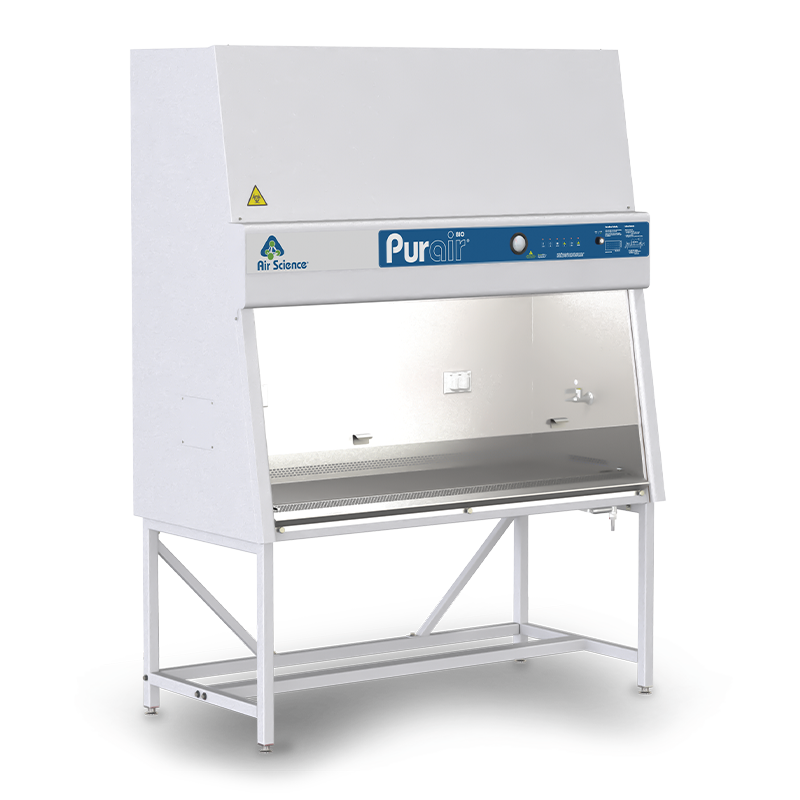

Purair BIO Biological Safety Cabinets
- Single EC Blower Motor Design. The Purair BIO biosafety cabinet is designed with a single EC blower motor for ease of use, reliability, and to promote low cost of ownership. Dual motor designs can introduce a number of problems, including unbalanced airflow, higher maintenance costs, longer certification processes, and uneven filter loading. Airflow adjustments are simpler, operational costs lower, and maintenance easier for BSCs equipped with single EC blower motors.
- Flexibility. The Purair BIO includes multiple service connections for maximum flexibility. It includes duplex electrical outlets with splash-proof, UL listed covers. CSA certified service valves for gas, air, and vacuum are also available. Maximum working pressure of 75PSI.
- Operator Safety. The anti-ultraviolet, 6 mm tempered glass ensures maximum protection for the operator.
- Ergonomic Design. The user interface combines ergonomics, safety, and aesthetics with a 10° angled window design that reduces operator head and elbow discomfort, as well as eye strain and fatigue.
- Slim Profile. The Purair BIO is one of the narrowest BSCs on the market and permits easy passage through standard doorways.
Description
Model Specifications
Internal Height: 28″ | 709 mm
External Width: 40.7″ | 1034 mm
External Depth: 31.1″ | 789 mm
External Height: 60.5″ | 1537 mm
Shipping Width: 43.3″ | 1100 mm
Shipping Depth: 33.5″ | 850 mm
Net Weight: 463 lbs | 210 kg
Shipping Weight: 529 lbs | 240 kg
Cabinet Style: Straight Legs
Construction: Stainless Steel
Manufacturing: EN 12469
Exhaust Collar*: HBE-103-AA-A
IV Bar Kit: BC-1934-A
Microprocessor Control*: AS-AHA-103-AB-B
Moveable Elbow / Arm Rest*: SHA-1X3-AA-A
Service Fixture Kit*: BA-L4100-158-B
* Factory installed; specify when ordering
Airflow: Vertical
Airflow Direction: Downflow
Face Velocity: 100
Face Velocity: 64
Biological Filter: 2 Astrocel Class H14 HEPA Filters (Supply and Exhaust)
Electrical Voltage: 120V, 60Hz
NEMA Plug: 5-15P
Control: Electronic
Internal Height: 28″ | 709 mm
External Width: 52.5″ | 1334 mm
External Depth: 31.1″ | 789 mm
External Height: 60.5″ | 1537 mm
Shipping Width: 55.1″ | 1400 mm
Shipping Depth: 33.5″ | 850 mm
Net Weight: 529 lbs | 240 kg
Shipping Weight: 617 lbs | 280 kg
Cabinet Style: Straight Legs
Construction: Stainless Steel
Manufacturing: EN 12469
Exhaust Collar*: HBE-133-AA-A
IV Bar Kit: BC-1671-A
Microprocessor Control*: AS-AHA-133-AB-A
Moveable Elbow / Arm Rest*: SHA-1X3-AA-A
Service Fixture Kit*: BA-L4100-158-B
* Factory installed; specify when ordering
Airflow: Vertical
Airflow Direction: Downflow
Face Velocity: 100
Face Velocity: 60
Biological Filter: 2 Astrocel Class H14 HEPA Filters (Supply and Exhaust)
Electrical Voltage: 120V, 60Hz
NEMA Plug: 5-15P
Control: Electronic
Internal Height: 28″ | 709 mm
External Width: 64.3″ | 1634 mm
External Depth: 31.1″ | 789 mm
External Height: 60.5″ | 1537 mm
Shipping Width: 67″ | 1700 mm
Shipping Depth: 33.5″ | 850 mm
Net Weight: 617 lbs | 208 kg
Shipping Weight: 705 lbs | 320 kg
Cabinet Style: Straight Legs
Construction: Stainless Steel
Manufacturing: EN 12469
Exhaust Collar*: HBE-163-AA-A
IV Bar Kit: BC-1673-A
Microprocessor Control*: AS-AHA-163-AB-B
Moveable Elbow / Arm Rest*: SHA-1X3-AA-A
Service Fixture Kit*: BA-L4100-158-B
* Factory installed; specify when ordering
Airflow: Vertical
Airflow Direction: Downflow
Face Velocity: 100
Face Velocity: 60
Biological Filter: 2 Astrocel Class H14 HEPA Filters (Supply and Exhaust)
Electrical Voltage: 120V, 60Hz
NEMA Plug: 5-15P
Control: Electronic
Internal Height: 28″ | 709 mm
External Width: 76.1″ | 1934 mm
External Depth: 31.1″ | 789 mm
External Height: 60.5″ | 1537 mm
Shipping Width: 78.7″ | 2000 mm
Shipping Depth: 33.5″ | 850 mm
Net Weight: 705 lbs | 320 kg
Shipping Weight: 816 lbs | 370 kg
Cabinet Style: Straight Legs
Construction: Stainless Steel
Manufacturing: EN 12469
Exhaust Collar*: HBE-193-AA-B
IV Bar Kit: BC-1674-A
Microprocessor Control*: AS-AHA-193-AB-A
Moveable Elbow / Arm Rest*: SHA-1X3-AA-A
Service Fixture Kit*: BA-L4100-158-B
* Factory installed; specify when ordering
Airflow: Vertical
Airflow Direction: Downflow
Face Velocity: 100
Face Velocity: 60
Biological Filter: 2 Astrocel Class H14 HEPA Filters (Supply and Exhaust)
Electrical Voltage: 120V, 60Hz
NEMA Plug: 5-15P
Control: Electronic
Technical Info
Model | Width | Depth | Height |
---|---|---|---|
AS-AHA-103-CB-B | 40.7" | 1034 mm | 31.1" | 789 mm | 60.5" | 1537 mm |
AS-AHA-133-CB-B | 52.5" | 1334 mm | 31.1" | 789 mm | 60.5" | 1537 mm |
AS-AHA-163-CB-B | 64.3" | 1634 mm | 31.1" | 789 mm | 60.5" | 1537 mm |
AS-AHA-193-CB-B | 76.1" | 1934 mm | 31.1" | 789 mm | 60.5" | 1537 mm |
Model | Width | Depth | Height |
---|---|---|---|
AS-AHA-103-CB-B | 36.2" | 920 mm | 24.6" | 626 mm | 28" | 709 mm |
AS-AHA-133-CB-B | 48" | 1220 mm | 24.6" | 626 mm | 28" | 709 mm |
AS-AHA-163-CB-B | 59.8" | 1520 mm | 24.6" | 626 mm | 28" | 709 mm |
AS-AHA-193-CB-B | 71.6" | 1820 mm | 24.6" | 626 mm | 28" | 709 mm |
Purair BIO is designed to protect individuals, the environment and products from a variety of biological particulates. Specific applications include, but are not limited to:
Life Science Research \ Sterile Product Preparation \ Biological Protocols
